Stainless Steel Anti-wear Tile
Anti-wear tile, also known as anti-wear cover, anti-wear plate, anti-wear protection tile, anti-wear cover plate, anti-corrosion cover plate, boiler climbing pipe, anti-wear pressure plate, etc., are commonly used accessories for the heating surface pipe of the power station boiler, and are used with the card ring.
Anti-wear tile is mainly used in the windward surface of the boiler superheater, reheater, coal izer, water wall pipe, and the induced draft fan will also be used (small amount). The main function is to protect the air surface of the boiler pipe, reduce pipe wear, and increase the service life of the heating surface pipe. The general industry is called "anti-wear tile", "anti-wear cover plate" in the majority. Anti-wear tile is a special accessory for boilers, generally used in the majority of power station boilers, small boilers used less, some coal chemical industry will also be used.
The service life of anti-wear tiles is different in different types of boilers and different parts. The normal service life is an overhaul cycle (3-5 years). Generally, the boiler will be replaced or installed some anti-wear tiles, including the maintenance. When replacement, according to the wear of anti-wear tile, if the thinning is serious and needs to be replaced, the deformation is serious, and the protective pipe also needs to be replaced. In addition, part of the boiler pipe is not equipped with anti-wear tile, but in the boiler regular inspection found that the pipe wear thinning trend, usually also equipped with anti-wear tile, to prevent further wear of the pipe, resulting in boiler pipe burst and other serious consequences.
The processing thickness of anti-wear tile is 2mm, 3mm, 4mm and 5mm, generally according to the severity of wear and the temperature guide.
Shape and specification of anti-wear tile

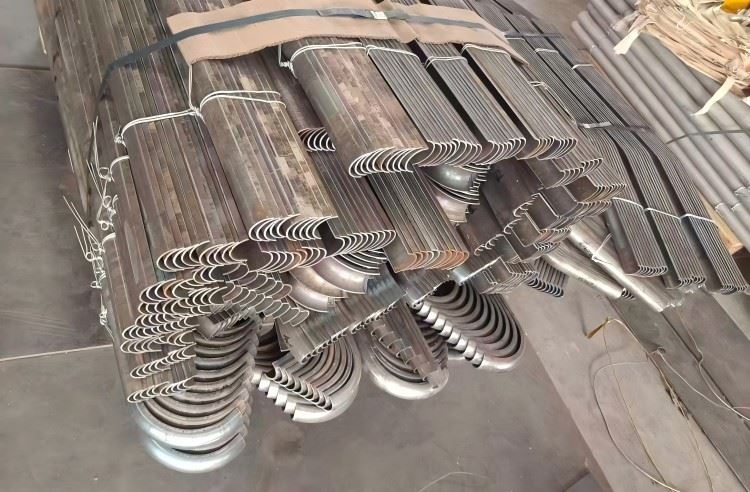

Most of the section shape of anti-wear tiles is semicircle (180 degrees), also 120-160 degrees, mainly used on the pipe with fins (water wall); the anti-wear tiles are divided into direct anti-wear tile, internal bending anti-wear tile, external bending anti-wear tile, side bending anti-wear tile, S-bending anti-wear tile, etc. The length of it varies from 20mm to 3000mm, and the general length is 1000-2000mm; the machining drawing shall include the following parameters: the outer diameter of the pipe, the bending radius of R (to the center of the pipe), the bending angle degree and the length of both sides of the arc.
The most basic parameter of the anti-wear tile is the outer diameter of the pipe used φ (that is, the inner diameter of the anti-wear tile), the main specifications of the pipe are: 32,38,42,4,44.5,48,51,57,60,63.5,76,89mm, etc.; the inner diameter of the anti-wear tile is usually 1-3mm larger than the pipe used, according to the actual requirements.
